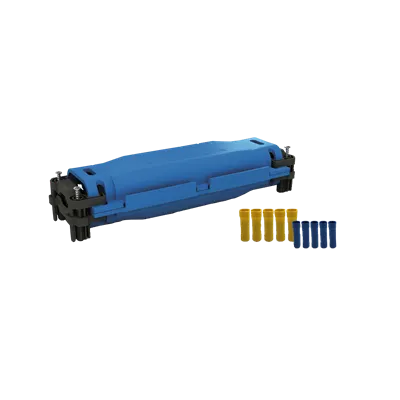

Wiska SH506W/C SHARK 55x146x35mm, IPX8 Pre-filled Gel Joint Suitable for upto 6mm Comes with Non-insulated BV2 Blue & BV5.5 Yellow Crimp Connectors, Blue
Product Description
SHARK Classic Series gel insulated joints can be used to make straight connections on 0.6/1 kV single or multicore.
SHARK Pre-filled gel insulated straight joint Includes retention clamp, earth braid and constant force roll springs.
Perfect for steel wired armour cable. Blue
SHARK Pre-filled gel insulated straight joint. Includes pre-insulated crimp connector, earth braid and constant force roll springs. Perfect for steel wired armour cable.
Features
- Material: Polyamide
- Filling: Silicone
- Temp. range min: -20 °C
- Temp. range max: 90 °C
- Glow wire test: self-extinguishing
- Terminals/poles: 3 - 5 x 1,5 - 6 mm²
- Protection class: IPX8
- Voltage: 0.6 kV - 1 kV
- Ampere: 80
- Cable Size: (5 core) 1.5 - 6 mm
- LxBxH: 55x146x35mm
Data Sheet:
